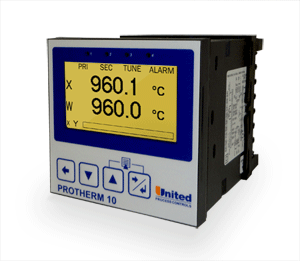

TEMPERATURE CONTROLLER
FOR HEAT TREATING PROCESSES

 MAIN FEATURES :

• 100 ms cycle time, i.e. also suitable for fast control loops

• Up to three freely configurable analog outputs, e.g. as process value output

• Up to 9 relay outputs

• Customer-specific linearization for all sensors

• Settings can be blocked via password and internal switch for high security

• Extended temperature range up to 131°F (55°C) allows mounting close to the process

• .Modular design

• The numerous possibilities this offers leads to a very wide range of applications, but with reduced stocks of spare parts

• Easy 2-point or offset measurement correction

• Logical combination of digital outputs, e.g. for general alarm

• RS 422/485 Modbus RTU interface

• Ethernet interface

• USB port

• Configuration interface

• Optional built-in transmitter power supply

• Splash-water proof front IP 66 (with USB interface IP 65)

• Setup-Wizard

MMI DISPLAY :

• Graphical, clearly readable red or green display (160 x 80 pixels)

• Dual colour display (green / red)

• Colour changes e.g. on alarm

• Multi-language option (English, French, German, Italian, Spanish)

• Custom splash-screen on startup (bitmap file)

• Alarm status view

• Trend view

• Status LEDs for heating / cooling

• Self-tuning function and alarm

CONFIGURATION & OPERATION:

• Convenient setup Wizard for simple configuration (inputs, alarms, outputs, communication, and real-time clock)

• Universal input for thermocouple, RTDs, and standard signals (mA, mV or V)

• Versatile output options: Relay, SSR driver, Triac, and standard signals (max. 9) for precise adaptation to the process.

• Digital inputs (2 max) for setpoint selection, programmer control, datalogger start/stop, control output enable/disable or auto/manual control.

• Configurable menus

• USB port for local upload/download of configuration files & download of logged data.

• Password protected Supervisor and Configuration mode

• Pre-tune and self-tune function

• Master-slave configuration for multi-zone applications

PROGRAMMER (OPTIONAL):

• Up to 255 segments for free allocation in max. 64 programs.

• Ramp, Dwell, Hold, Loop, or Jump to other program.

• User-defined program names.

• Delayed or real-time (date/time) program start.

• Up to 5 event outputs.

DATALOGGER (OPTIONAL):

• Recording of historic process data for analysis or reporting.

• Data exported as *.csv files via front USB port or rear interface.

• Logging of process values, setpoints or alarms (including min, max, and average).

• Run-then-stop or FIFO (first in - first out) buffer recording.

• Logging intervals from 1sec to 30 minutes.
